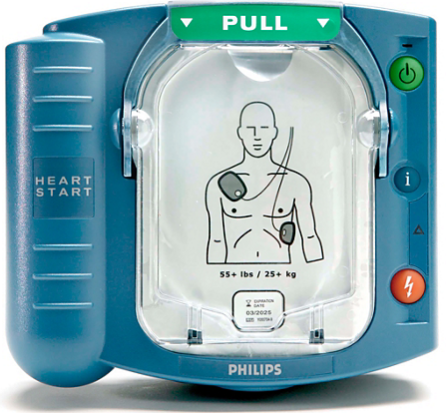

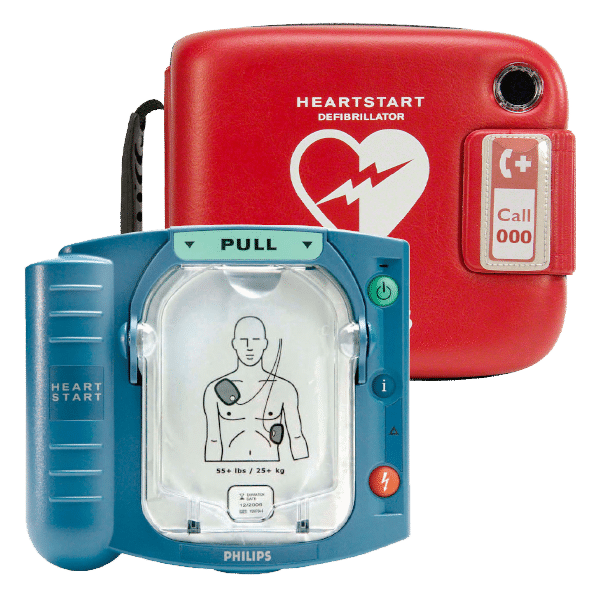

Philips HS1 HeartStart Defibrillator
R33 062,50
VAT Included
An AED that lest anyone react effectively to a sudden cardiac arrest emergency. Easy to set-up, it offers automatic Life Guidance features including like voice prompts and CPR coaching to help guide you through every step of the necessary treatment.
Description
Key features include:
- “Life Guidance” Voice Prompts: The device provides adaptive, detailed voice instructions that adjust to the user’s pace and actions, ensuring proper pad placement and CPR technique.
- SMART Analysis Technology: This proprietary technology automatically assesses the victim’s heart rhythm to determine if a shock is necessary, only delivering therapy if a shockable rhythm (ventricular fibrillation or certain ventricular tachycardias) is detected. This minimizes the risk of unnecessary shocks.
- SMART Biphasic Therapy: The HS1 uses a high-current, low-energy truncated exponential biphasic waveform to maximize shock effectiveness while minimizing potentially harmful side effects to a fragile heart.
- Quick Shock Feature: To improve survival rates, the device is designed to deliver a shock rapidly after the end of a CPR interval, typically within 8 seconds.
- Versatile Patient Use: The device is suitable for use on adults and children over 8 years old or 25 kg (55 lb). With the optional Infant/Child SMART Pads Cartridge installed, it automatically adjusts to a lower, age-appropriate shock energy and provides specific CPR instructions for children aged 0-8 years or under 25 kg (55 lb).
- Automated Self-Tests: The unit performs comprehensive daily, weekly, and monthly self-tests to check its internal circuitry, battery capacity, and pad readiness (including gel moisture), indicated by a blinking green “Ready” light, ensuring it is always prepared for an emergency.
- Durability and Portability: The HS1 is lightweight (1.5 kg or 3.3 lbs with battery and pads) and compact, featuring a robust design that can withstand a one-meter drop. It has an IP21 rating, protecting it from solid objects and dripping water.
Technical Specifications
| Attribute | Detail |
|---|---|
| Defibrillator Type | Semi-automatic |
| Waveform | Truncated Exponential Biphasic |
| Energy Output | Adult: 150 J nominal into a 50-ohm load. Child: 50 J nominal with infant/child pads. |
| Dimensions (H x W x D) | 7.2 cm x 21 cm x 19 cm (2.8 in x 8.3 in x 7.4 in) |
| Weight | 1.5 kg (3.3 lbs) with battery and pads |
| Battery Type | 9 Volt DC, 4.2 Ah disposable lithium manganese dioxide primary cell (M5070A) |
| Battery Standby Life | Typically 4 years |
| Pads Type | SMART Pads Cartridge (Adult M5071A; Infant/Child M5072A – sold separately) |
| Pads Lifespan | 2 years from date of manufacture |
| Shock Delivery Time | Typically within 8 seconds after CPR |
| Data Storage | Stores the first 15 minutes of ECG and entire incident’s events; data can be wirelessly transmitted via IrDA protocol to a PC |
| IP Rating | IP21 (Protected from solid objects >12mm and dripping water) |
| Warranty | 8 years manufacturer warranty on the defibrillator unit |
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 40 × 10 cm |
Features
Key Features
- Life Guidance Voice Prompts: Provides clear, adaptive voice instructions for the entire rescue process.
- SMART Analysis & Biphasic Technology: Assesses heart rhythm and only advises a shock if needed. Uses a high-current, low-energy waveform for effectiveness while minimizing heart impact.
- Quick Shock: Minimizes the time between CPR and shock delivery.
- Integrated SMART Pads: Sensors in the pads provide feedback to the AED, allowing it to adapt instructions.
- Child Compatibility: Optional infant/child pads adjust instructions and energy for children.
- Automated Self-Tests: Performs regular tests to ensure readiness, indicated by a blinking green light. An audible chirp signals maintenance needs.
- Lightweight and Portable: Weighs 1.5 kg (3.3 lbs) with battery and pads, making it easy to carry.
- Data Management: Records ECG and event data, which can be reviewed on a PC.
Technical Specifications
| Feature | Detail |
|---|---|
| Defibrillator Type | Semi-automatic external defibrillator |
| Waveform | SMART Truncated Exponential Biphasic |
| Energy Output (Adult) | Nominal 150 Joules into a 50-ohm load |
| Energy Output (Child) | Nominal 50 Joules into a 50-ohm load (with optional pads) |
| Battery Life (Standby) | Typically 4 years |
| Pads Lifespan | 2 years from date of manufacture |
| Weight (with battery/pads) | 1.5 kg (3.3 lbs) |
| Warranty | 8 years (manufacturer’s warranty for the defibrillator unit) |
| IP Rating (dust/water resistance) | IP21 |
