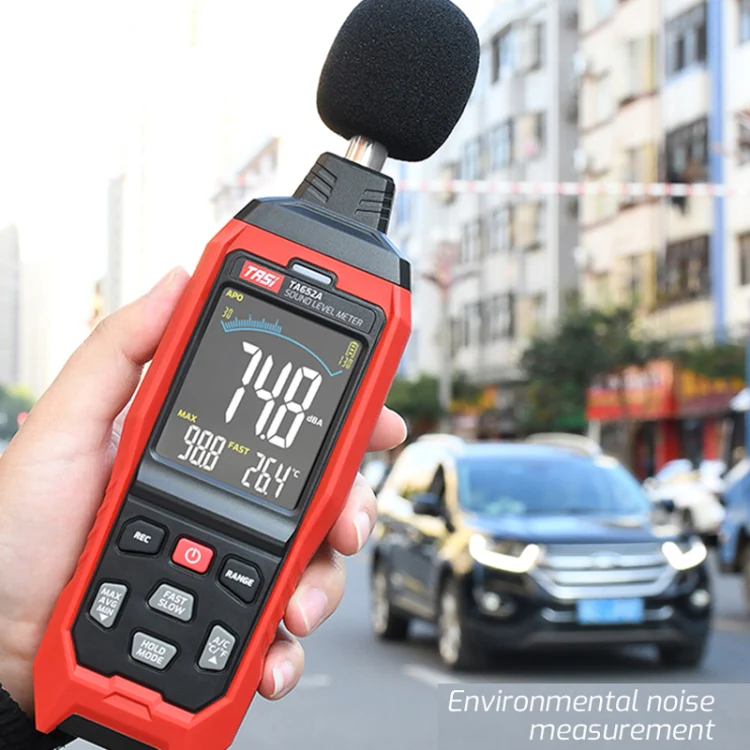

TA652A Basic Type 2 Sound Meter
R2 899,00
VAT Included
The TA652A is a digital Class 2 sound level meter designed for environmental noise monitoring in industrial, residential, and educational settings. It provides a cost-effective solution for basic noise assessments and health and safety compliance, such as spot-checking occupational noise levels.
Key Technical Specifications
- Measurement Range: 30 to 130 dB.
- Accuracy: ±1.5 dB (Type 2/Class 2 standard).
- Frequency Range: 31.5 Hz to 8 kHz.
- Frequency Weighting: A-weighting (for human ear response) and C-weighting (for peak sound pressure).
- Time Weighting: Fast (125ms) and Slow (1s) response modes.
-
Core Features
- High-Sensitivity Sensor: Equipped with a ½” electret condenser microphone for instantaneous response.
- Visual Interface: Large backlit color LCD display featuring a 4-digit numeric readout and an analog bar graph.
- Alarm System: Adjustable high and low alarm thresholds with both audible buzzers and flashing light indicators.
- Data Functions: Supports SPL, Min, Max, and Average readings; the unit can store up to 1,999 sets of data internally.
- Power & Portability: Powered by 3x 1.5V AA batteries or via a Micro-USB 5V interface, featuring a 15-minute auto-shutdown to save energy.
5 in stock
Description
The TA652A is a digital Type 2 sound level meter designed for environmental and industrial noise monitoring. It provides standardized sound pressure level (SPL) measurements for compliance with workplace health and safety standards.
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 40 × 30 × 10 cm |
Features
Key Technical Specifications
- Measurement Range: 30 to 130 dB.
- Accuracy: ±1.5 dB (reference at 94 dB @ 1 kHz).
- Frequency Response: 31.5 Hz to 8 kHz.
- Frequency Weighting: A and C modes.
- Time Weighting: FAST (125 ms) and SLOW (1 second).
- Microphone: Highly sensitive ½-inch electret condenser microphone.
- Resolution: 0.1 dB.
Core Features
- Display: Large backlit color VA screen featuring a 4-digit numeric display (up to 1999) and a 30-segment analog bar graph where each segment represents 1 dB.
- Alarm System: Adjustable high and low alarm thresholds with both audible (buzzer) and visual (flashing light) alerts.
- Measurement Modes: Captures SPL, Maximum (MAX), Minimum (MIN), and Average sound levels.
- Data Storage: Internal memory capable of storing up to 1,999 sets of data points.
- Power Options: Powered by 3 x 1.5V AA batteries or via a Micro-USB 5V interface.
- Auto Power Off: Shuts down automatically after 15 minutes of inactivity to conserve battery (can be manually disabled).
-

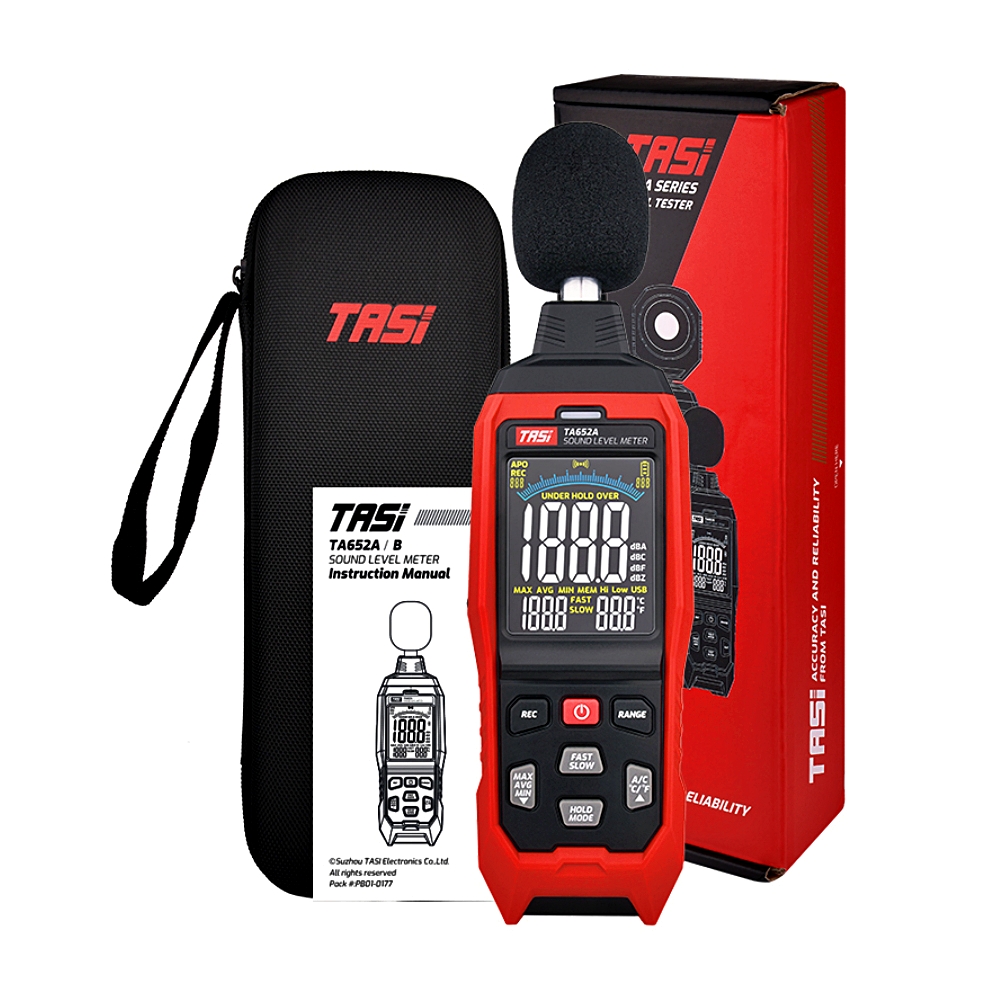

Standard AccessoriesTypical retail packages include:
- TA652A Sound Level Meter
- Windshield (foam cover for microphone)
- Protective carrying case/cloth bag
- Instruction manual
- 3 x AA batteries.
