My Fridge Online VM 1000 Real-Time Monitoring System
Enquire Now:
+27 87 255 2427
Admin@alcoholandgas.co.za
The VM-1000 is a World Health Organization (WHO) accredited, real-time vaccine temperature monitoring system. It is used to ensure the integrity of the vaccine cold chain during manufacture, storage, and distribution.
Key Temperature Features
- Operating Range: Capable of monitoring across an ultra-wide range from -200°C to +1200°C, making it suitable for both standard pharmacy refrigerators (+2°C to +8°C) and ultra-low temperature freezers.
- Real-Time Alerts: Automatically notifies users via SMS, email, or audible alarms immediately when temperature excursions (deviations from the set range) occur.
- Probe Capacity: Can manage up to eight probes (four wired and four wireless) to monitor multiple storage units simultaneously.
- Data Reliability: Features internal storage that can hold up to 30 days of data in the event of a network failure, ensuring an auditable history for regulatory compliance.
-
Operational Benefits
- WHO Certification: Accredited under the WHO PQS E006/061 standard for device stability and reliability.
- Cloud Connectivity: Data is transmitted via LTE, GSM, or Wi-Fi to a cloud-based dashboard for remote access from any internet-enabled device.
- Compliance Reporting: Automatically generates graphical and system history reports required for legal and medical documentation.
Description
Vaccine temperature monitoring with the VM-1000.
It is critical to the effectiveness of any vaccine, that the vaccine storage and handling occurs within the prescribed and stable temperature range. The importance of vaccine temperature monitoring simply can’t be understated, as any temperature excursion during vaccine storage or transport can cost lives.
The CDC’s 2018 Vaccine Storage and Handling Toolkit states that the most reliable way to maintain vaccines, as usable and safe, requires a stable cold-chain as a necessity.
Ikhaya Automation Systems offers a smart solution in the form of the VM-1000 vaccine temperature monitoring system: a cutting edge real-time temperature monitoring system with interactive web service consisting of a dashboard, integrated reporting, and an alert system.
Designed to operate across the entire specified temperature range of -200°C to 1200°C, the unit is able to monitor temperatures during the manufacture, storage, and distribution of any vaccine.
Features
The VM-1000 is a World Health Organization (WHO) approved real-time temperature monitoring system (RTMS) . It is specifically designed for maintaining the cold chain during the manufacture, transport, and storage of vaccines and other thermolabile pharmaceutical products.
Key Temperature & Monitoring Features
- Wide Monitoring Range: While standard vaccine storage is +2°C to +8°C, the VM-1000 is capable of monitoring temperatures from -200°C to +1200°C, making it suitable for standard refrigerators, ultra-low freezers, and cryo-vessels.
- Multi-Probe Support: The unit can manage up to 8 total probes (4 wired and 4 wireless) to monitor multiple units or points simultaneously.
- Real-Time Alerts: It provides immediate notifications via SMS, email, and audible alarms if temperatures deviate from preset thresholds. These alerts can often be managed or cancelled remotely.
- Automated Data Logging: The system replaces manual recording with continuous, automated data collection. It includes an internal SD card for local storage and transmits data to a cloud-based portal for centralized monitoring.
- Redundancy and Storage: In the event of network failure, the device can store up to 30 days of data on internal storage. It also features a backup battery with a lifespan of 3 to 5 years.
-
Hardware & Connectivity

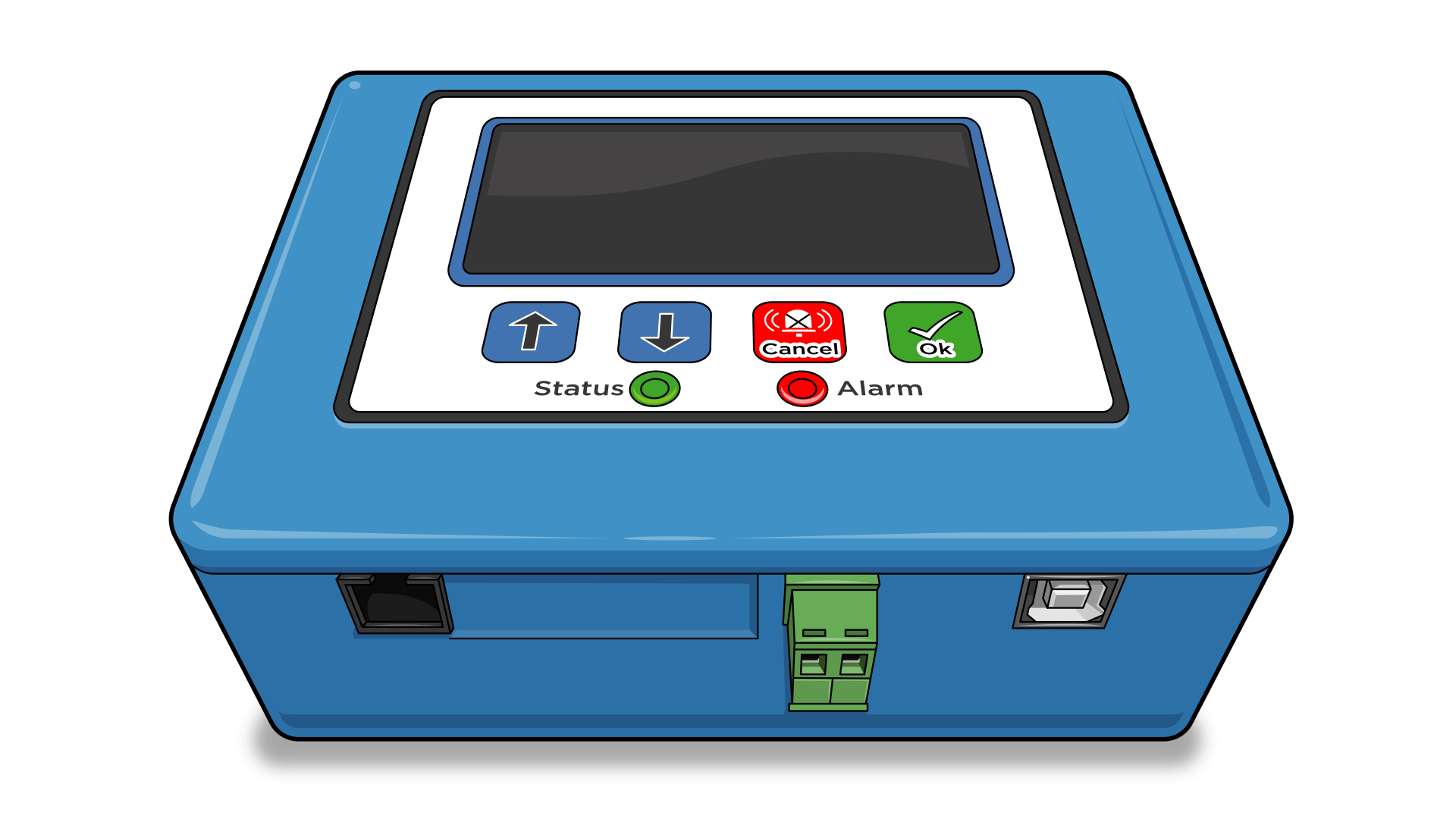

- Display: Features a large, interactive backlit LCD screen for direct visual temperature checks and local system control.
- Communication Protocols: Supports diverse connectivity options, including LTE, GSM (2G/3G), and Wi-Fi networks using local or international SIM cards.
- Environmental Monitoring: Beyond temperature, the system can monitor humidity, power status (mains power failure), and door-open status via external sensors.
- GPS Integration: The unit is GPS-enabled, which is useful for tracking location during the transport of vaccines.
-
Compliance and Software
- WHO Certification: It is listed under the WHO PQS (Performance, Quality, and Safety) code E006/061.
- Cloud Reporting: Linked to portals like My Fridge Online, users can access real-time dashboards and automatically generate auditable history reports for regulatory compliance.
