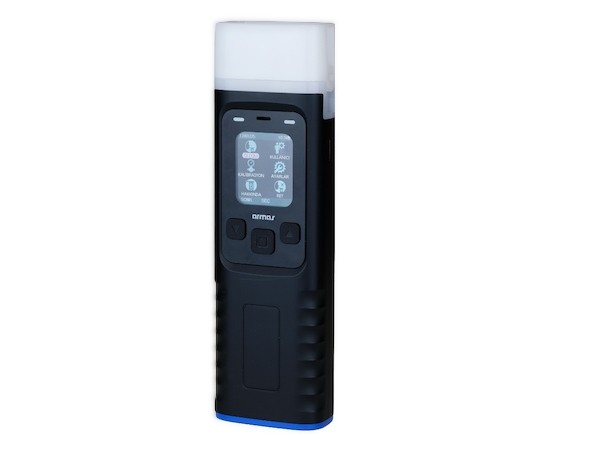

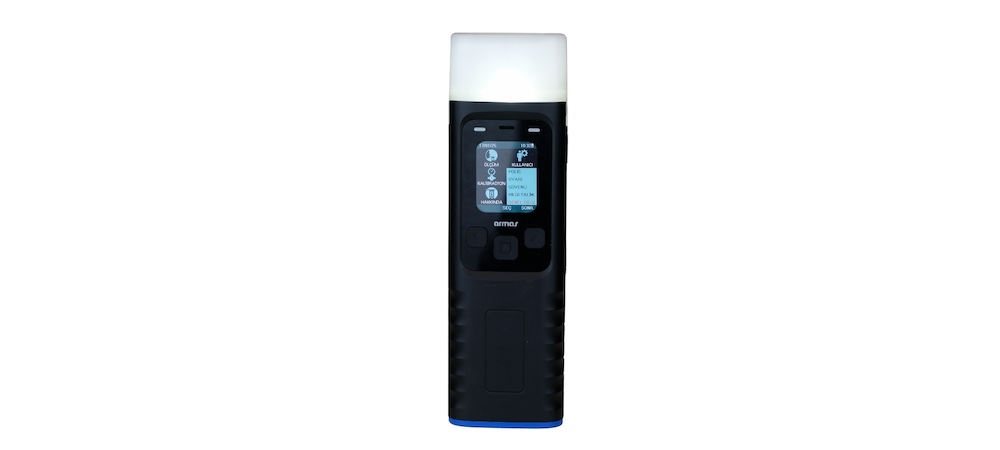

Armas NAM-C20 Contact-Free Breathalyser
R7 999,99
VAT Included
Competency training & certification included.
The Armas NAM-C20 Breathalyser is an advanced, contact-free breath alcohol tester designed for both personal and high-volume professional. It utilizes electrochemical fuel cell technology to provide rapid, hygienic, and accurate preliminary screenings without physical contact.
Key Features
- Hygienic Contact-Free Design: Uses a specialized, washable, and replaceable “NAM-P2” blowing funnel that allows multiple users to be tested consecutively without direct mouth contact.
- Dual Testing Modes: Features an Active Mode for precise quantitative measurement and a Passive Mode for rapid detection (ideal for entry-point screenings in mines, factories, or stadiums).
- Rapid Performance: The device is ready for use in under 2 seconds and can handle up to 14 tests per minute when results are negative.
- Visual and Audible Alerts: Equipped with a 1.83-inch color TFT display that changes color and provides clear status indicators: “No Alcohol,” “Critical,” and “Alcohol Detected”.
- Data Management: Stores between 7,500 and 100,000 records (depending on the model/upgrade), which can be transferred to a PC via NAM-DATAPro software for documentation.
Technical Specifications
- Sensor Type: New Generation ARMAS Electrochemical Fuel Cell.
- Measurement Range: 0.00 – 6.00‰ (promille) or 0.00% – 0.20% BAC.
- Operating Temp: -10°C to +50°C.
- Power: 2 x AA Alkaline batteries or an optional rechargeable Li-ion battery.
- Optional Support: External Bluetooth or thermal printer support for instant on-site reporting.
21 in stock
Description
The Armas NAM-C20 Breathalyser is an advanced, contact-free breath alcohol tester designed for high-speed, hygienic screenings in professional and industrial environments. It utilizes a fuel cell sensor to provide rapid results without the need for physical contact with the device.
Core Features
- Contact-Free Technology: Uses a replaceable and washable NAM-P2 blowing funnel that allows subjects to blow from a distance, eliminating the need for disposable plastic mouthpieces and ensuring high hygiene standards.
- Electrochemical Fuel Cell Sensor: Equipped with a high-accuracy sensor that reduces false positives and provides precise measurements ranging from 0.00 to 6.00‰ (promille).
- Dual Testing Modes:
- Active/Auto Mode: For precise measurement with a standard breath sample.
- Passive Mode: For quick screenings or testing uncooperative subjects without direct blowing.
- Visual & Audible Alerts: Features a 1.83-inch color TFT display that provides color-coded results: “No Alcohol” (Green), “Critical” (Yellow), and “Alcohol” (Red).
- Data Management: Stores between 7,500 and 100,000 records (upgradable) and supports data transfer to a computer via the NAM-DATAPro software.
Technical Specifications
| Feature | Details |
|---|---|
| Response Time | Minimum 2 seconds; maximum 15 seconds |
| Start-up Time | Less than 2.5 seconds |
| Test Frequency | Up to 14 tests per minute (for negative results) |
| Operating Temp | -10°C to +50°C |
| Power Supply | Alkaline AA batteries or optional Li-ion rechargeable battery |
| Connectivity | Supports optional Bluetooth or thermal printers for instant reporting |
Applications
The NAM-C20 is widely used in sectors where occupational safety is critical, including:
- Industrial Sites: Mining, construction, and factories.
- Public Safety: Law enforcement checkpoints and stadium security.
- Hospitality: Hotels and workplace entry points.
Additional information
| Weight | 0,5 kg |
|---|---|
| Dimensions | 10 × 5 × 1,6 cm |
Features
Key Features
Color Display and Visual Alerts
Measurement results are easily monitorable from a distance with a contact-free blowing funnel that changes color. The warnings of results, “No Alcohol,” “Critical,” and “Alcohol,” facilitate quick and effective decision-making.
Cost-Effective Use
The design minimizes the need to replace the funnel, reducing long-term costs. The same funnel can be safely and consecutively used by different individuals.
Technological Advantages
Precise Electrochemical Sensor
Features advanced sensor technology for exceptional accuracy and reliability.
Fast and Practical Use
Ready for measurement in under 2 sec.
External Printer Support
Optional thermal printer allows for easy documentation of measurement results.
Data Storage and Transfer
Offers a storage capacity of 7,500 to 100,000 records, with the ability to securely save measurement results in the memory and transfer them to a computer via cable connection and the software NAM-DATAPro.
