Armas NAM-19 Evidence Class Professional Breathalyser with BT Printer.
R17 351,20
VAT Included
Competency training & certification included.

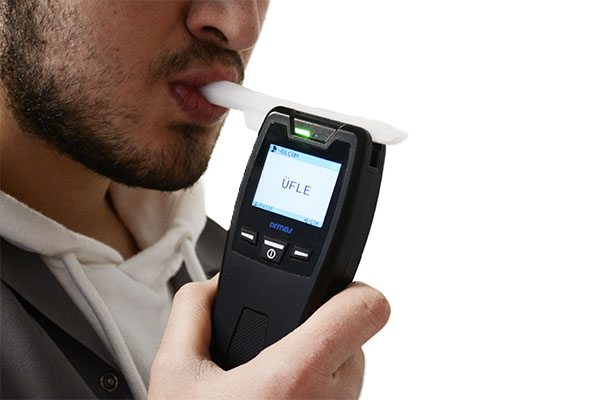

The NAM-19S is a professional, evidence-class breathalyzer featuring a high-precision electrochemical fuel cell sensor designed for law enforcement and workplace safety. It offers rapid, accurate BAC (Blood Alcohol Content) measurements up to 6.00‰, with results available in under 15 seconds.
Key Features:
- Printer & Connectivity: Includes a thermal Bluetooth printer for on-the-spot reporting.
- Modes & Interface: Features 3-button navigation, a color TFT screen, and supports Active, Passive, and Manual modes.
- Memory & Data: Stores up to 100,000 records, with data transferable to a PC via NAM-DATAPro software.
- Hygiene & Power: Uses disposable mouthpieces and is powered by a 3.7V Li-ion battery.
Description
Key Features and Product Description
- Evidence Class Accuracy: Certified for high-precision measurements, it uses an electrochemical sensor for reliable results, even with high-volume testing.
- Measurement Modes: Offers Auto, Manual, Passive, and Measurement Refusal modes to handle different testing scenarios, including passive, non-contact sampling.
- Printer Integration: The system typically includes a portable thermal Bluetooth printer, enabling immediate, on-the-spot reporting of breath alcohol content (BAC).
- User-Friendly Interface: Features a 3-button, user-friendly interface with a color TFT display, which is sun-readable.
- Memory and Data Transfer: Stores up to 7,500 to 100,000 records (depending on data input) with date/time, and supports downloading data to a PC via NAM-DATAPro software.
- Optional Features: GPS for locating tests and an optional passive cup for non-contact, rapid screening.
Technical Specifications
- Sensor: High-precision Electrochemical Fuel Cell
- Measurement Range: 0.00 – 6.00 ‰ (promille) BAC
- Ready Time: Approximately 5 seconds
- Result Time: Under 15 seconds
- Memory: 7,500 standard (up to 100,000 depending on model configuration)
- Battery: 3.7V Lithium-ion (rechargeable)
- Calibration: Dry gas or vapor
- Operating Temp: -10°C to +50°C

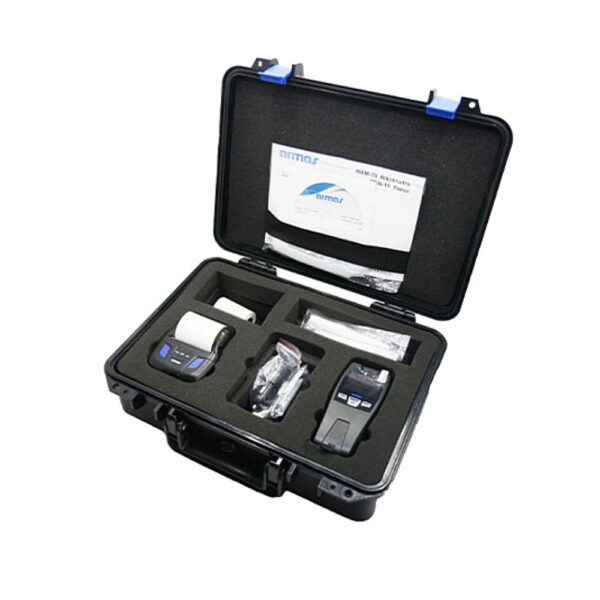

Package Contents
- NAM-19S Breathalyzer unit
- Bluetooth Printer
- Disposable hygienic mouthpieces
- Carrying case
- Charging adapter
The NAM-19S is often distinguished from the standard NAM-19 by having fewer buttons for faster operation and a more compact design.
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 40 × 30 × 20 cm |
Features
The NAM-19S is a professional, evidence-class breath alcohol tester designed for law enforcement, workplace safety, and roadside traffic control. It is distinguished from the standard NAM-19 by its simplified 3-button interface (omitting the full alphanumeric keypad) while maintaining high-precision sensing capabilities.
Core Features
- High-Precision Sensor: Uses a new-generation electrochemical fuel cell sensor for “Evidence Class” accuracy.
- Measurement Modes: Offers four versatile modes to handle different testing scenarios:
- Auto/Active: For standard testing where the subject blows into a mouthpiece.
- Manual: Used if a subject has difficulty providing sufficient breath.
- Passive: Non-contact testing using a funnel-style cup to detect alcohol in the ambient air or from an unconscious person.
- Measurement Refusal: Allows logging and registering when a subject refuses to take the test.
- Speed and Efficiency: The device is ready for use within 5–6 seconds of powering on. Results for sober subjects are immediate, while alcohol-positive results are displayed within 15 seconds.
- Data Storage: Large memory capacity storing between 7,500 and 100,000 records (depending on data input complexity), including date and time stamps.
Printer and Connectivity

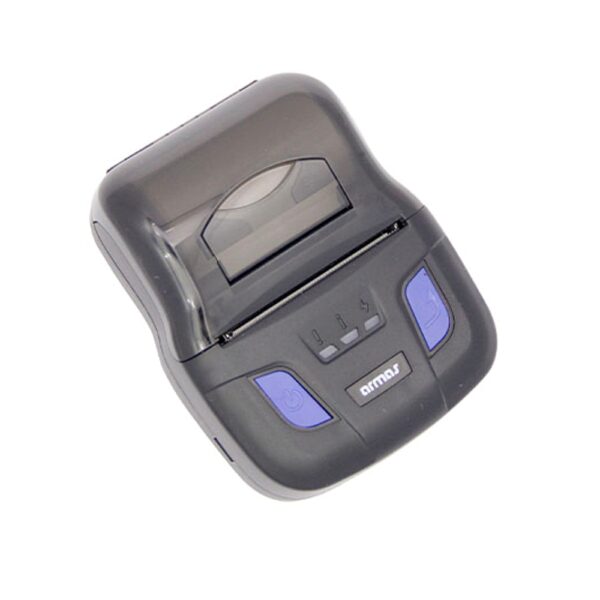

- Bluetooth Thermal Printer: The NAM-19S typically includes or supports an optional portable Bluetooth thermal printer for immediate on-site reporting of test results.
- Simultaneous Charging: Specialized desk-type chargers can charge both the breathalyzer and the printer at the same time.
- PC Integration: Data can be transferred and archived to a computer using the NAM-DATA Pro software via a specialized cable.
Technical Specifications
- Measurement Range: 0.00 – 6.00‰ (promille) BAC.
- Display: Sun-readable transreflective color TFT screen for outdoor visibility.
- Operating Temperature: Functions in environments from -10°C to +50°C.
- Battery: Standard 3.7V Lithium-ion rechargeable battery; optional Alkaline or Ni-Mh support.
- GPS (Optional): Can record the exact geographic coordinates of the measurement location.
- Certifications: CE, DOT/NHTSA (Evidential), and international standards for shock (EN60068-2-27) and vibration (EN60068-2-6).
