Armas NAM-19 Evidence Class Professional Breathalyser
R10 830,70
VAT Included
Competency training & certification included.

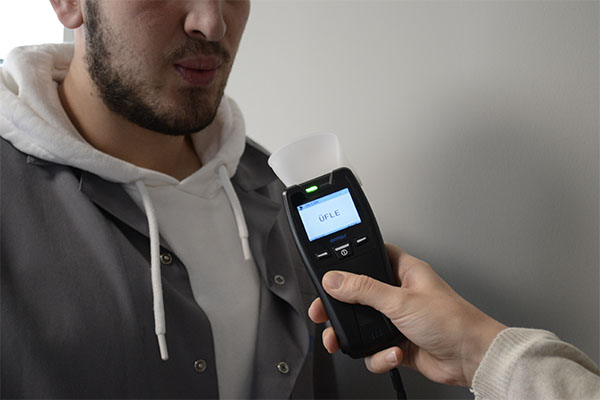

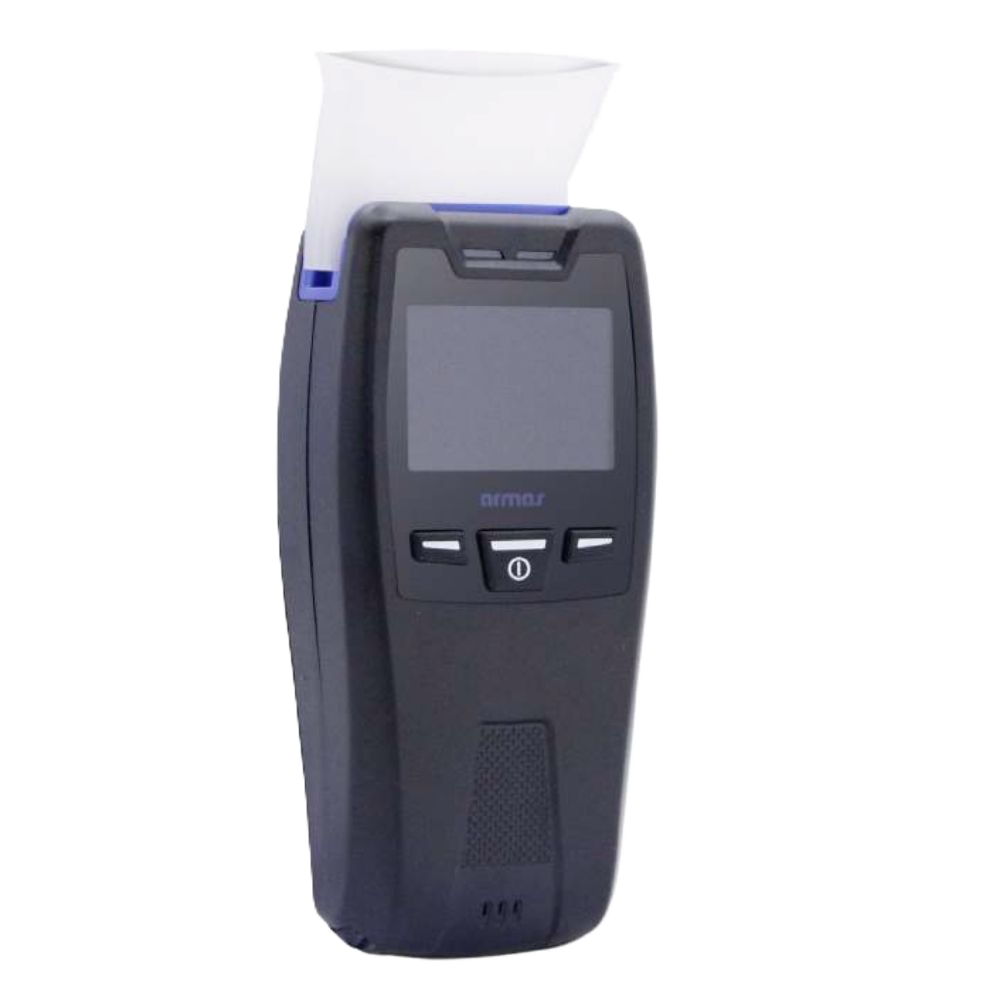

The NAM-19S Breathalyser is a professional, evidence-class handheld breathalyzer developed by ARMAS Elektronik. It is designed for high-precision alcohol testing in law enforcement, roadside traffic control, and workplace safety environments.
- Precision Sensor: Utilizes a new-generation electrochemical fuel cell for high accuracy and sensitivity.
- Measurement Modes: Offers four versatile modes:
- Auto/Active: Standard testing for cooperative subjects.
- Manual: For subjects with limited breath capacity.
- Passive: Non-contact ambient air or unconscious subject testing (using an optional passive cup).
2 in stock
Description
General Specifications
With its specially designed new generation electrochemical sensor, NAM-19 is a life-saving, technological alcohol measuring device that has been certified as an evidence class by measuring with extremely high accuracy and sensitivity.
NAM-19 Breathalyzer can be used reliably at every point that requires road, life, property and work safety such as roadside traffic controls, law enforcement officers’ security controls, workplaces, transportation.
Evidence Class Measurement Accuracy
NAM-19, produced using a specially developed new generation electrochemical sensor technology, provides sensitive, accurate and reliable results and meets the requirements of international standards, and is an accepted alcohol meter in the evidence class.
Measurement Modes That Enable Use Under All Conditions
NAM-19 Breathalyzer allows measurement in any situation with Automatic / Active, Manual, Passive and Measurement rejection modes. Apart from automatic measurement, the NAM-19 Alcoholmeter, which can make manual measurements in case of shortness of breath, can also make ambient measurements with its passive measurement mode. Those who do not want to have a measurement with the Measurement Rejection mode can be registered.
Additional information
| Weight | 0,5 kg |
|---|---|
| Dimensions | 10 × 5 × 1,6 cm |
Features
Key Features of the NAM-19S Breathalyser:
- Sensor Technology: Uses a new-generation 16mm electrochemical fuel cell for high-precision, reliable alcohol measurements.
- Accuracy: Offers evidence-class accuracy, with a range of 0.00 – 6.00‰ (promille). Accuracy is better than 0.03‰ in the 0.00-1.00‰ range.
- Measurement Modes: Supports multiple modes, including Automatic, Manual, Passive (for non-contact, rapid, or environmental sampling), and Measurement Refusal.
- User Interface & Design:
- Screen: Features a 2-inch, color, sun-readable transreflective TFT display.
- Interface: User-friendly 3-button interface for quick operation.
- Menu: Features guided, multi-language, symbolized menu settings with warnings.
- Data & Memory:
- Memory Capacity: Stores between 7,500 and 100,000 records (depending on data input) with date and time.
- Data Transfer: Data can be transferred to a PC using NAM-DATAPro software via cable.
- Operating Features:
- Ready Time: Extremely fast, ready to use in less than 6 seconds.
- Sampling: Accommodates both disposable hygienic mouthpieces and an optional passive sampling cup.
- GPS: Optional GPS module for tracking the location of the measurement.
- Printer: Optional Bluetooth thermal printer for immediate report generation.
- Power: 3.7V Lithium-ion rechargeable battery (standard).
- Certifications: Complies with CE, DOT/NHTSA (Evidential), and EN15964 standards.
- Environmental Temperature: Operates in temperatures ranging from -10°C to +50°C.
Differences from Other Models:
- vs. NAM-19: The NAM-19S does not have the alphanumeric keypad for data entry that is found on the standard NAM-19.
- vs. NAM-19E: The NAM-19E is an even more basic, cost-effective,, and generally uses alkaline batteries, whereas the NAM-19S uses Li-ion.
